Progress Report 4

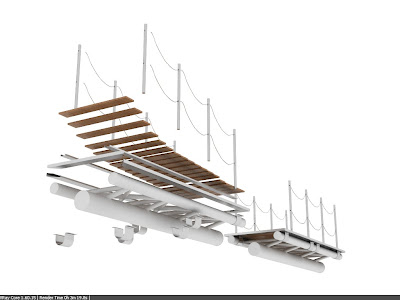

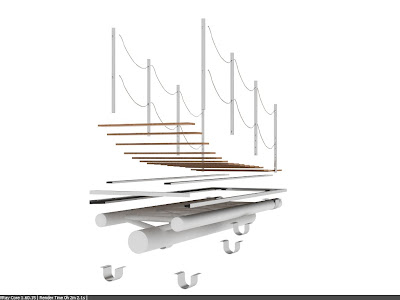

The spine of the bridge will consist of a series of ridged walkways that serve as the path across the bridge and as anchor supports. Below are two exploded renderings of these platforms, exploring their assembly and a possible presentation style for the final submission.
Image 1
Image 1
Subscribe to:
Post Comments (Atom)
HSS - HOLLOW structural section
ReplyDeleteThey are HOLLOW. Should I have exploded the steel plate caps at the ends to show this..? They caps are there for multiple reasons and I've seen this done before.
