Progress Report 5

Image 1 - The large rings that form the spine of the bridge and the anchor rings that will guide the path of the steel cables.

Image 2 - Since the steel cables are twisting, both the large rings and anchor rings will require a high level of flexibility as to their rotation. Once the final rotation is set, the components can be bolted and welded in place with minimal welding.

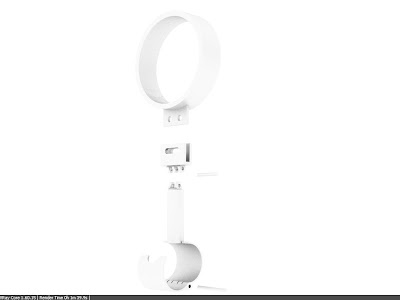

Image 3 - One of the anchor ring components in an exploded detail.
